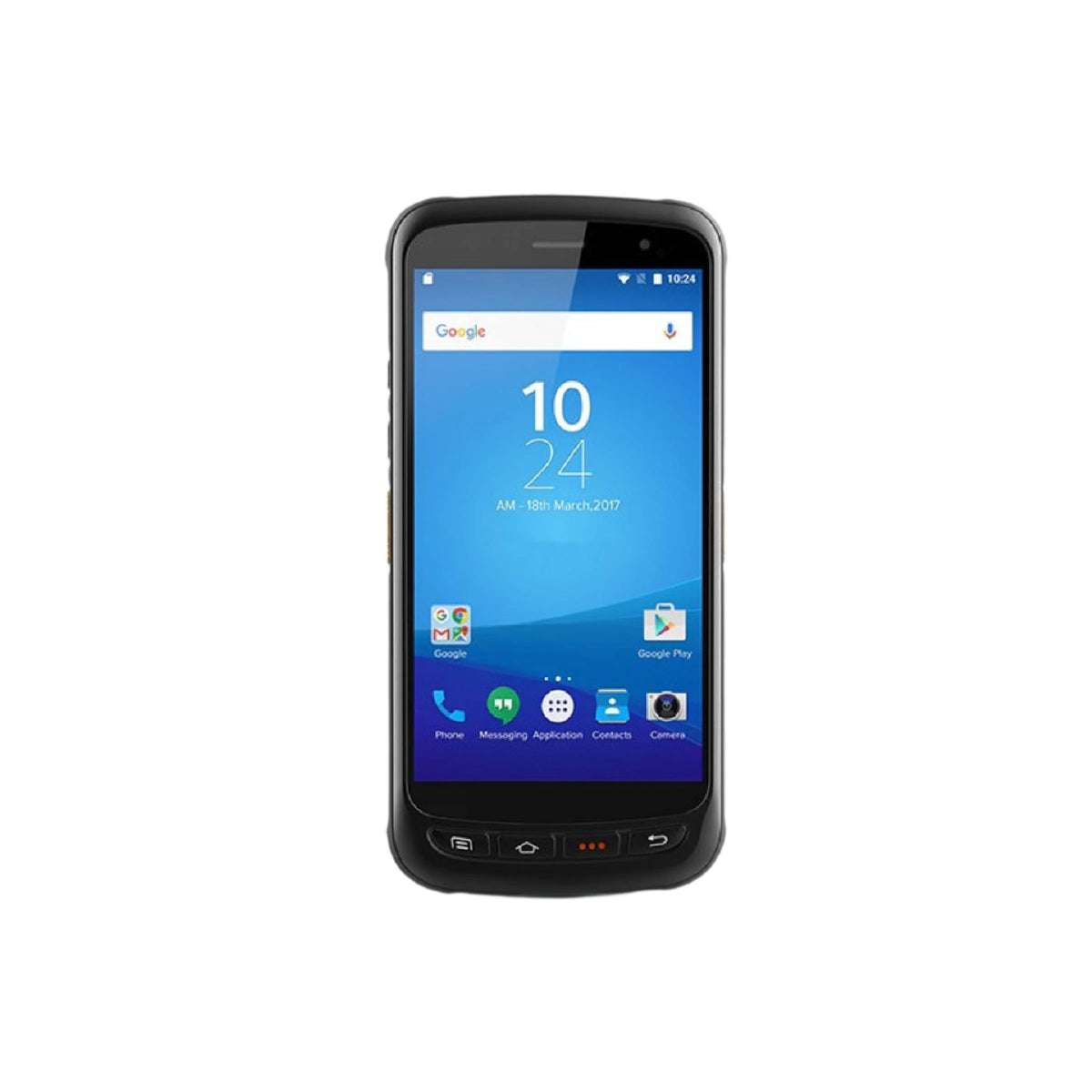

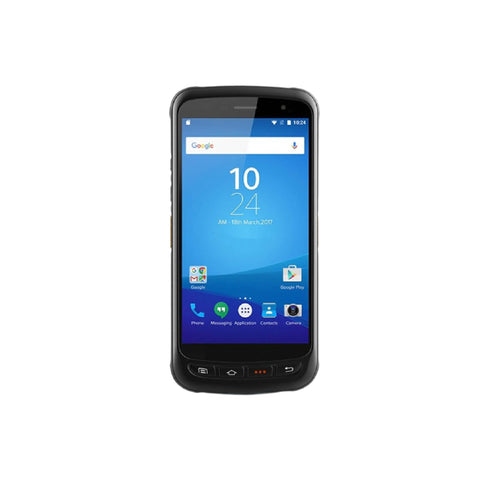

Chainway C71 Mobile Computer

Physical Characteristics

  Dimensions

 164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version)

  Weight

 < 288 g / 10.15 oz. (for standard version)

  Display

 5.2'' IPS LTPS 1920 x 1080

  Touch Panel

 Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

  Power

 Main battery: Li-ion, rechargeable, 5000 mAh
 Standby: over 350 hours
 Continuous use: over 12 hours (depending on user environment)
 Charging time: 3-4 hours (with standard adaptor and USB cable)

 Notification

 Sound, LED indicator, vibrator

 Expansion Slot

 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

 Interfaces

 USB 2.0 Type-C, OTG, Type-C headphones supported

 Audio

 2 microphones，1 for noise cancellation；1 speaker；receiver

 Keypad

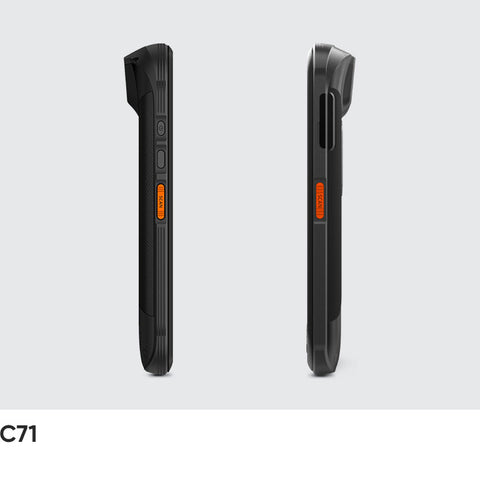

 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

 Sensors

 Light sensor, proximity sensor, gravity sensor

Communication

 WLAN

 IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

 WWAN

 2G: GSM850/GSM900/DCS1800/PCS1900
 3G: WCDMA：B1/B2/B4/B5/B8
       CDMA2000 EVDO: BC0
       TD-SCDMA：A/F
 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
       B28B/B34/B38/B39/B40/B41

 WWAN (Others)

 Depending on the country's ISP

 Bluetooth

 Bluetooth 5.0

 GNSS

 GPS/AGPS, GLONASS, BeiDou; internal antenna

Developing Environment

 Operating System

 Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.

 SDK

 Chainway Software Development Kit

 Language

 Java

 Tool

 Eclipse / Android Studio

Performance

 CPU

 Octa-core, 2.3GHz

 RAM+ROM

 3GB + 32GB
 4GB + 64GB (optional)

 Expansion

 Supports up to 256GB Micro SD (TF) card

User Environment

 Operating Temp.

 4 °F to 122 °F / -20 °C to 50 °C

 Storage Temp

 -40 °F to 158 °F / -40 °C to 70 °C

 Humidity

 5% RH - 95% RH non condensing

 Drop Specification

 Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

 Tumble Specification

 1000 x 0.5 m / 1.64 ft. falls at room temperature

 Sealing

 IP65 / IP67 per IEC sealing specifications

 ESD

 15 KV air discharge, ±6 KV conductive discharge

 Note

 Operating temperature of UHF version: -20°C to 45°C

Barcode Scanning

 1D Linear Scanner

 Honeywell: N4313

 2D Imager Scanner

 Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60

 1D Symbologies

 UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

 2D Symbologies

 PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

 Note

 This function is optional

UHF RFID

 Engine

 CM310-1 module based on Impinj E310

 Frequency

 865-868 MHz / 920-925 MHz / 902-928 MHz

 Protocol

 EPC C1 GEN2 / ISO18000-6C

 Antenna

 Circular polarization (1.5 dBi)

 Power

 1W ( +5 dBm to +30 dBm adjustable)

 Max Read Range

 Up to 3m (depend on tags and environment)

 Note

 This function is optional

Fingerprint 1

 Sensor

 TCS1 Capacitive

 Sensing Area (mm)

 12.8 × 18.0

 Resolution (dpi)

 508 dpi, 8-bit greylevel

 Certifications

 FIPS 201, STQC

 Format Extraction

 ISO 19794, WSQ, ANSI 378, JPEG2000

 Fake Finger Detection

 Support by SDK

 Security

 AES, DES key encryption of the host communication channel

 Note

 This function is optional

Fingerprint 2

 Sensor

 TLK1NC02

 Sensing Area (mm)

 14 X 22

 Resolution (dpi)

 508dpi, 256 greylevel

 Certifications

 FIPS 201, FBI

 Format Extraction

 ISO19794, WSQ, ANSI 378, JPEG2000

 Fake Finger Detection

 Support by SDK

 Security

 AES, DES key encryption of the host communication channel

 Note

 This function is optional

Fingerprint 3

 Sensor

 Optical Morpho CBM-E3

 Sensing Area (mm)

 14 x 22

 Resolution (dpi)

 500 dpi, 256 greylevel

 Certifications

 FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC

 Format Extraction

 ISO 19794-2/4, WSQ, ANSI 378, etc

 Fake Finger Detection

 Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper

 Security

 FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.

 Note

 This function is optional

Camera

 Front Camera

 5 MP This function is optional

 Rear Camera

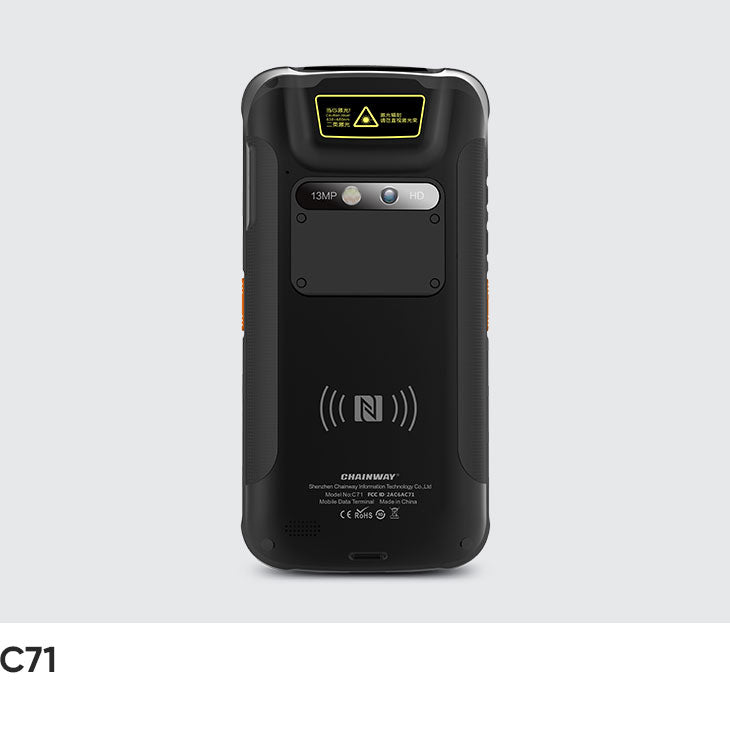

 13 MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible

NFC

 Frequency

 13.56 MHz

 Protocol

 ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

 Chips

 M1 card (S50, S70), CPU card, NFC tags, etc.

 Range

 2-4 cm

 Note

 his function is optional;

 Note2

 NFC alternative to HF RFID.

PSAM

 Protocol

 ISO7816 T=0, T=1

 Slots

 2 slots for PSAM cards

 Note

 This function is optional

HF RFID

 Frequency

 13.56 MHz

 Protocol

 ISO14443A/B, ISO15693

 Chips

 M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
 CPU_A card,CPU_B card
 ICODE II,TI2048,LRI64K
 Others for customization

 Range

 3-8 cm

 Note

 This function is optional; HF RFID alternative to NFC
