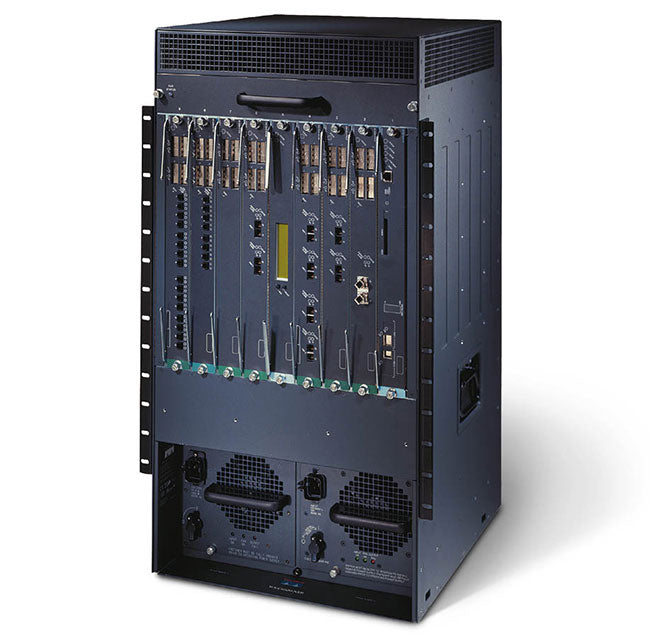

Cisco 7600 Series Routers

Physical dimensions

● Height: 32.7 in. (83 cm)

● Width: 17.3 in. (43.9 cm)

● Depth: 18.1 in. (46 cm)

Power requirements

● 100 to 240 VAC recommended (or –48 to –60 VDC)

Mean time between failure (MTBF)

● 311,778 hours

Environmental conditions

● Operating temperature: 32 to 104°F (0 to 40°C)

● Storage temperature: –4 to 149°F (–20 to 65°C)

● Relative humidity, operating: 5 to 90%, noncondensing

● Relative humidity, storage: 5 to 95%, noncondensing

● Operating altitude: ◦ Certified for operation: 0 to 6500 ft(0 to 2000m) ◦ Designed and tested for operation: –200 to 10,000 ft (–60 to 3000 m)

Regulatory compliance

● UL 60950 Second Edition

● CAN/CSA-C22.2 No. 60950 Second Edition

● EN 60950 Second Edition

● IEC 60950 Second Edition

● AS/NZS 60950

Electromagnetic compatibility (EMC)

● FCC Part 15 (CFR 47) Class A

● VCCI Class A

● EN55022 Class A

● CISPR 22 Class A

● CE marking

● AS/NZS 3548 Class A

● ETS300 386

● EN55024

● EN61000-6-1

● EN50082-1

Safety and environmental standards compliance

● GR-1089-Core NEBS Level 3

● ETSI 300 019 Storage Class 1.1

● ETSI 300 019 Transportation Class 2.3

● ETSI 300 019 Stationary Use Class 3.1

Minimum software release

● Cisco IOS Software Release 15.3(1)S for Route Switch Processor 720 and Release 15.1(1)SY for the Supervisor 2T

Part Number

Description

CISCO7613-S

CISCO7613-S=

PWR-6000-DC=

WS-CAC-6000W =

PWR-4000-DC=

WS-CAC-4000W-US=

WS-CAC-4000W-INT=

WS-CAC-3000W=

WS-CDC-2500W=

WS-CAC-8700W-E=

FAN-MOD-13SHS=

Cisco 7613-S Chassis

Cisco 7613-S chassis, mounting kit, and cable guide

6000W DC power supply for Cisco 7609/7609-S/7613

Spare AC power supply for the Cisco 7609/7609-S chassis

4000W DC power supply for Cisco 7609/7613

Spare AC power supply for Cisco 7609 chassis (requires 30A circuit) US/Japan cord attached

Spare AC power supply for Cisco 7609 chassis (requires 30A circuit) International cord attached

Spare 3000W AC power supply for the Cisco 7609 and 7613

Spare DC 2500W Supply

Spare 8700W Enhanced AC Power Supply

Cisco 7613 fan tray, spare
