Cisco Air-Cap2702i-A-K9

Item

Specification

Part Numbers

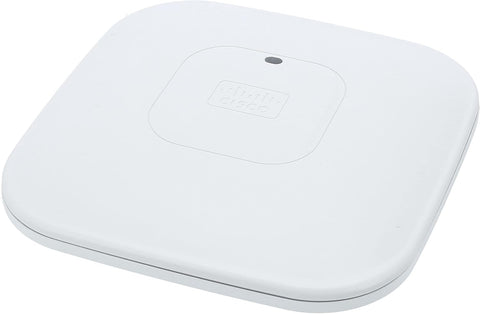

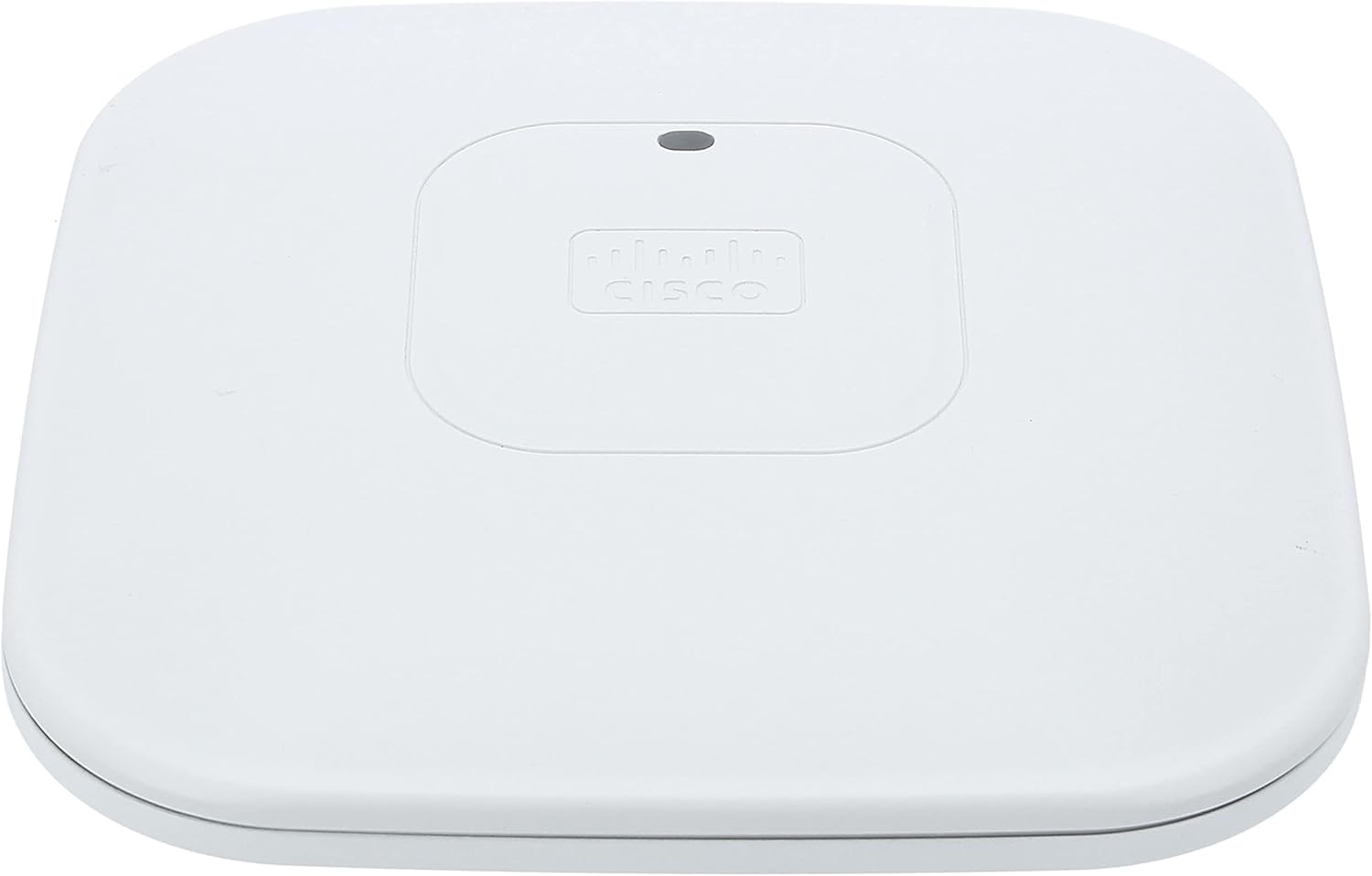

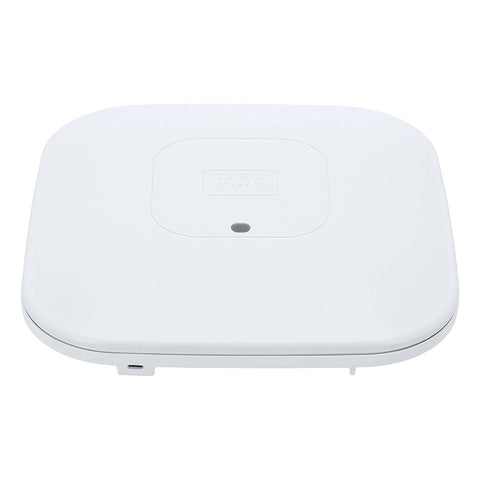

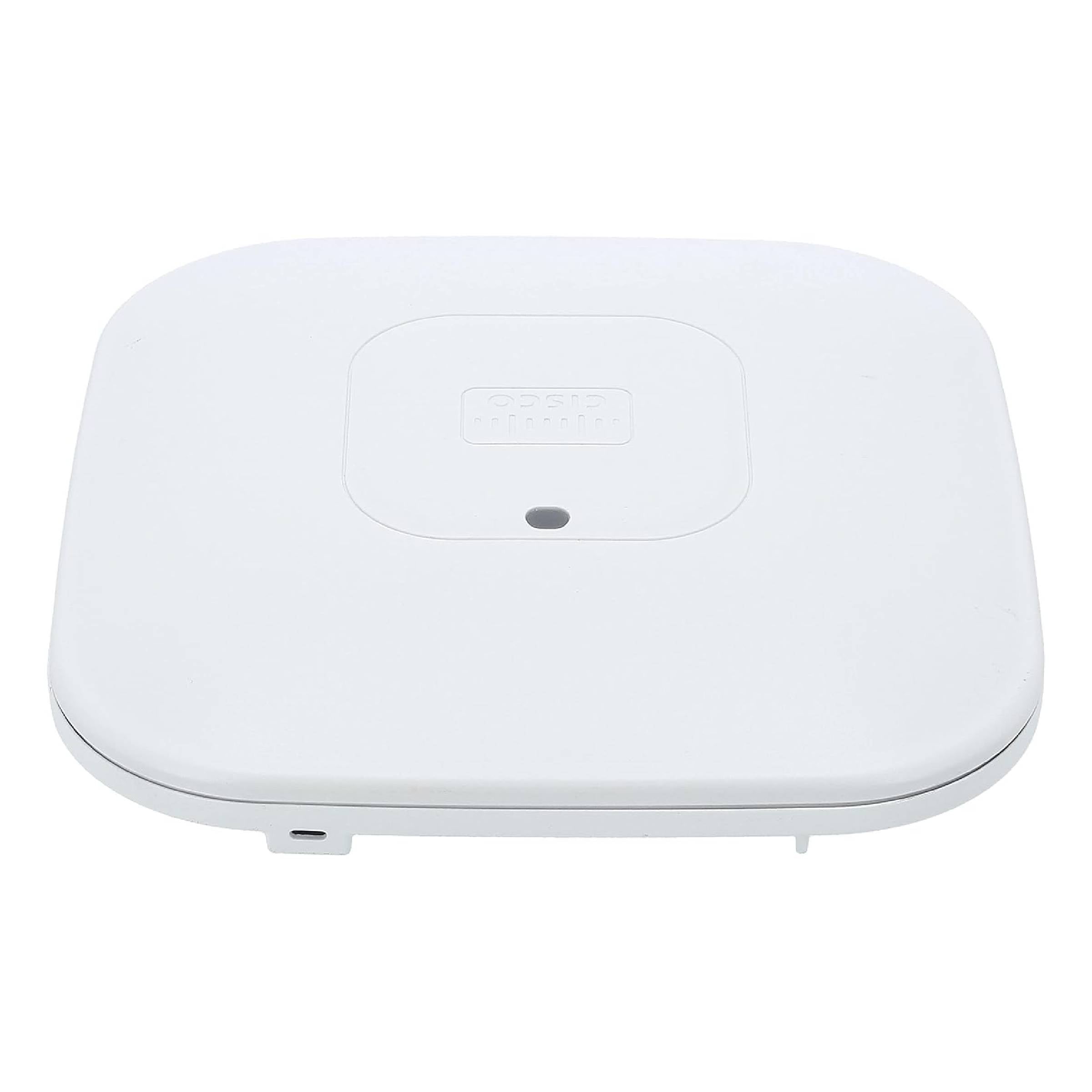

The Cisco Aironet 2600i Access Point: Indoor environments with internal antennas

●  AIR-CAP2602I-x-K9: Dual-band controller-based 802.11a/g/n

●  AIR-CAP2602I-xK910: Eco-pack (dual-band 802.11a/g/n) 10 quantity access points

●  AIR-SAP2602I-x-K9: Dual-band autonomous 802.11a/g/n

●  AIR-SAP2602I-x-K95: Eco-pack (dual-band 802.11a/g/n) 5 quantity access points

The Cisco Aironet 2600e Access Point: Indoor, challenging environments with external antennas

●  AIR-CAP2602E-x-K9: Dual-band controller-based 802.11a/g/n

●  AIR-CAP2602E-xK910: Eco-pack (dual-band 802.11a/g/n) 10 quantity access points

●  AIR-SAP2602E-x-K9: Dual-band autonomous 802.11a/g/n

●  AIR-SAP2602E-x-K95: Eco-pack (dual-band 802.11a/g/n) 5 quantity access points

Cisco SMARTnet^® Service for the Cisco Aironet 2600i Access Point with internal and External antennas

●  CON-SNT-y - SMARTnet 8x5xNBD 2600i/e access point (dual-band 802.11 a/g/n)

(e.g. CON-SNT-C262IE for AP2600 internal antenna for E Domain)

Cisco Wireless LAN Services

●  AS-WLAN-CNSLT - Cisco Wireless LAN Network Planning and Design Service

●  AS-WLAN-CNSLT - Cisco Wireless LAN 802.11n Migration Service

●  AS-WLAN-CNSLT - Cisco Wireless LAN Performance and Security Assessment Service

Regulatory Domains: (x = regulatory domain)

Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit: http://www.cisco.com/go/aironet/compliance.

Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.

Software

Cisco Unified Wireless Network Software Release 7.2.110 or later.

Supported Wireless LAN Controllers

●  Cisco 2500 Series, Cisco Wireless LAN Controller Module (WLCM) on Cisco Services Ready Engine (SRE) for Integrated Services Router Generation 2 (ISR G2), Cisco Wireless Services Module 2 (WiSM2), Cisco 5500 Series, Cisco Flex 7500 Series

802.11n Version 2.0 (and Related) Capabilities

●  3x4 multiple-input multiple-output (MIMO) with three spatial streams

●  Maximal ratio combining (MRC)

●  802.11n and 802.11a/g beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps (40-MHz with 5 GHz)

●  Packet aggregation: Aggregated MAC Protocol Data Unit (A-MPDU) (Tx/Rx), Aggregated MAC Protocol Service Unit (A-MSDU) (Tx/Rx)

●  802.11 dynamic frequency selection (DFS)

●  Cyclic shift diversity (CSD) support

Data Rates Supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11bg: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates (2.4 GHz^[1] and 5 GHz):

MCS Index^[2]

GI^[3] = 800ns

GI = 400ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

0

6.5

13.5

7.2

15

1

13

27

14.4

30

2

19.5

40.5

21.7

45

3

26

54

28.9

60

4

39

81

43.3

90

5

52

108

57.8

120

6

58.5

121.5

65

135

7

65

135

72.2

150

8

13

27

14.4

30

9

26

54

28.9

60

10

39

81

43.3

90

11

52

108

57.8

120

12

78

162

86.7

180

13

104

216

115.6

240

14

117

243

130

270

15

130

270

144.4

300

16

19.5

40.5

21.7

45

17

39

81

43.3

90

18

58.5

121.5

65

135

19

78

162

86.7

180

20

117

243

130

270

21

156

324

173.3

360

22

175.5

364.5

195

405

23

195

405

216.7

450

Frequency Band and 20-MHz Operating Channels

A (A regulatory domain - FCC):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.745 to 5.825 GHz; 5 channels

E (E regulatory domain - ETSI):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)

I (I regulatory domain):

●  2.412 to 2.472 GHz, 13 channels

●  5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.620 GHz, 7 channels

●  5.745 to 5.805 GHz, 4 channels

N (N regulatory domain - Non FCC):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5,660 to 5,805 GHz, 7 channels

S ( S regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 11 channels

●  5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.280 to 5.320 GHz; 3 channels

●  5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit: http://www.cisco.com/go/aironet/compliance.

Maximum Number of Nonoverlapping Channels

2.4 GHz

●  802.11b/g:

◦    20 MHz: 3

●  802.11n:

◦    20 MHz: 3

5 GHz

●  802.11a:

◦    20 MHz: 21

●  802.11n:

◦    20 MHz: 21

◦    40 MHz: 9

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Receive Sensitivity

●  802.11b (CCK)

◦    -100 dBm @ 1 Mb/s

◦    -99 dBm @ 2 Mb/s

◦    -92 dBm @ 5.5 Mb/s

◦    -88 dBm @ 11 Mb/s

●  802.11g (non HT20)

◦    -91 dBm @ 6 Mb/s

◦    -91 dBm @ 9 Mb/s

◦    -91 dBm @ 12 Mb/s

◦    -90 dBm @ 18 Mb/s

◦    -87 dBm @ 24 Mb/s

◦    -85 dBm @ 36 Mb/s

◦    -80 dBm @ 48 Mb/s

◦    -78 dBm @ 54 Mb/s

●  802.11a (non HT20)

◦    -92 dBm @ 6 Mb/s

◦    -92 dBm @ 9 Mb/s

◦    -92 dBm @ 12 Mb/s

◦    -92 dBm @ 18 Mb/s

◦    -89 dBm @ 24 Mb/s

◦    -86 dBm @ 36 Mb/s

◦    -81 dBm @ 48 Mb/s

◦    -79 dBm @ 54 Mb/s

2.4-GHz

●  802.11n (HT20)

◦    -91 dBm @ MCS0

◦    -90 dBm @ MCS1

◦    -90 dBm @ MCS2

◦    -88 dBm @ MCS3

◦    -85 dBm @ MCS4

◦    -80 dBm @ MCS5

◦    -78 dBm @ MCS6

◦    -75 dBm @ MCS7

◦    -90 dBm @ MCS8

◦    -90 dBm @ MCS9

◦    -89 dBm @ MCS10

◦    -86 dBm @ MCS11

◦    -82 dBm @ MCS12

◦    -78 dBm @ MCS13

◦    -77 dBm @ MCS14

◦    -75 dBm @ MCS15

◦    -90 dBm @ MCS16

◦    -89 dBm @ MCS17

◦    -87 dBm @ MCS18

◦    -84 dBm @ MCS19

◦    -81 dBm @ MCS20

◦    -76 dBm @ MCS21

◦    -75 dBm @ MCS22

◦    -74 dBm @ MCS23

5-GHz

●  802.11n (HT20)

◦    -92 dBm @ MCS0

◦    -91 dBm @ MCS1

◦    -90 dBm @ MCS2

◦    -87 dBm @ MCS3

◦    -84 dBm @ MCS4

◦    -80 dBm @ MCS5

◦    -78 dBm @ MCS6

◦    -75 dBm @ MCS7

◦    -92 dBm @ MCS8

◦    -90 dBm @ MCS9

◦    -88 dBm @ MCS10

◦    -85 dBm @ MCS11

◦    -81 dBm @ MCS12

◦    -77 dBm @ MCS13

◦    -76 dBm @ MCS14

◦    -74 dBm @ MCS15

◦    -91 dBm @ MCS16

◦    -89 dBm @ MCS17

◦    -86 dBm @ MCS18

◦    -83 dBm @ MCS19

◦    -80 dBm @ MCS20

◦    -75 dBm @ MCS21

◦    -74 dBm @ MCS22

◦    - 73 dBm @ MCS23

5-GHz

●  802.11n (HT40)

◦    -89 dBm @ MCS0

◦    -88 dBm @ MCS1

◦    -87 dBm @ MCS2

◦    -84 dBm @ MCS3

◦    -81 dBm @ MCS4

◦    -76 dBm @ MCS5

◦    -74 dBm @ MCS6

◦    -73 dBm @ MCS7

◦    -89 dBm @ MCS8

◦    -87 dBm @ MCS9

◦    -85 dBm @ MCS10

◦    -81 dBm @ MCS11

◦    -78 dBm @ MCS12

◦    -74 dBm @ MCS13

◦    -72 dBm @ MCS14

◦    -71 dBm @ MCS15

◦    -88 dBm @ MCS16

◦    -85 dBm @ MCS17

◦    -83 dBm @ MCS18

◦    -79 dBm @ MCS19

◦    -76 dBm @ MCS20

◦    -72 dBm @ MCS21

◦    - 70 dBm @ MCS22

◦    -69 dBm @ MCS23

Maximum Transmit Power

2.4 GHz

●  802.11b

◦    22 dBm: 3 Antennas

●  802.11g

◦    22 dBm: 3 Antennas

●  802.11n (HT20)

◦    22 dBm: 3 Antennas

5 GHz

●  802.11a

◦    23 dBm: 4 Antennas

●  802.11n (HT20)

◦    23 dBm: 4 Antennas

●  802.11n (HT40)

◦    23 dBm: 4 Antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Available Transmit Power Settings

2.4 GHz

●  22 dBm (160 mW)

●  19 dBm (80 mW)

●  16 dBm (40 mW)

●  13 dBm (20 mW)

●  10 dBm (10 mW)

●  7 dBm (5 mW)

●  4 dBm (2.5 mW)

5 GHz

●  23 dBm (200 mW)

●  20 dBm (100 mW)

●  17 dBm (50 mW)

●  14 dBm (25 mW)

●  11 dBm (12.5 mW)

●  8 dBm (6.25 mW)

●  5 dBm (3.13 mW)

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Integrated Antenna

●  2.4 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°

●  5 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°

External Antenna (Sold Separately)

●  Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

●  Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

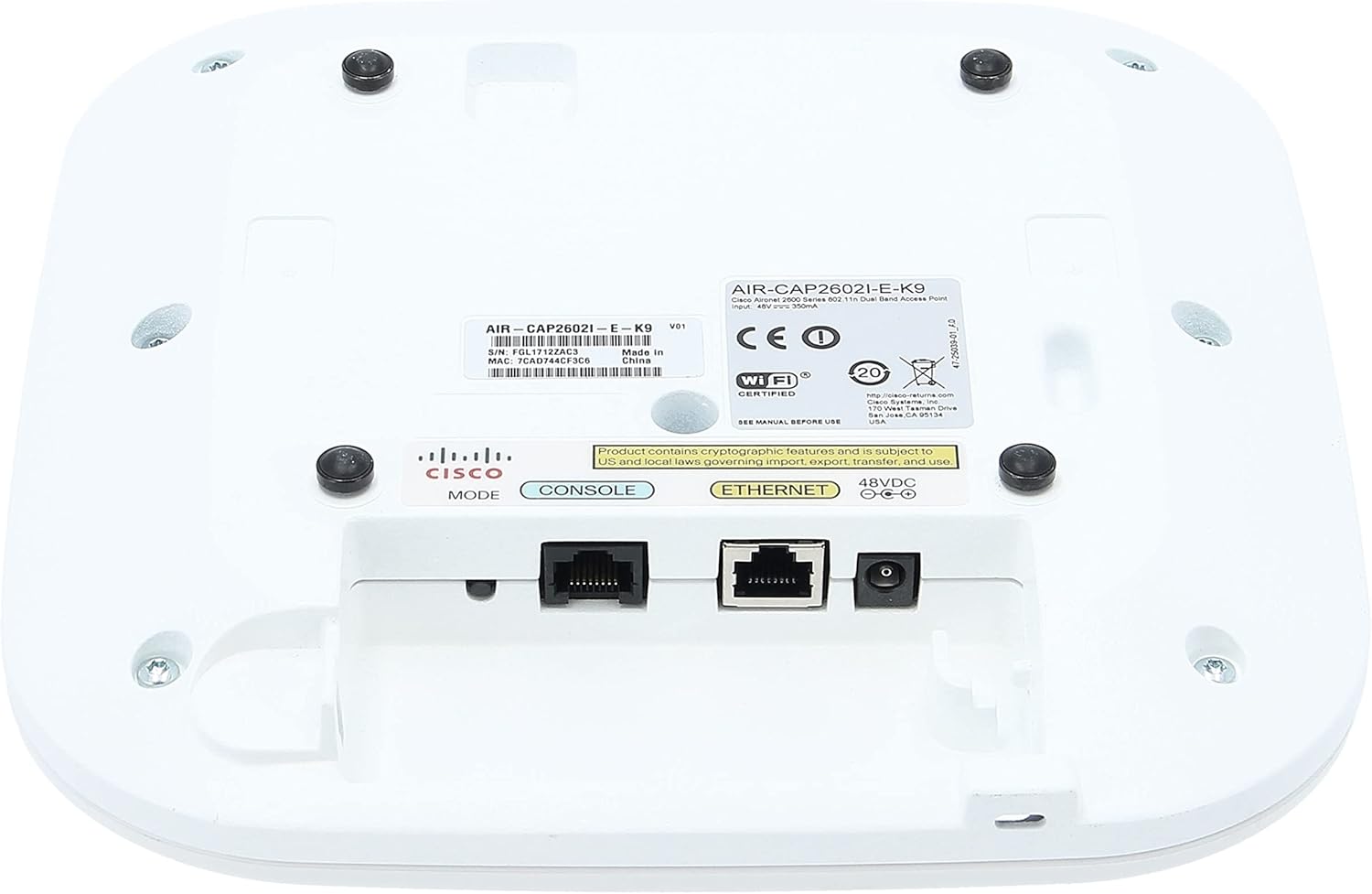

Interfaces

●  10/100/1000BASE-T autosensing (RJ-45)

●  Management console port (RJ-45)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions
(W x L x H)

●  Access point (without mounting bracket): 8.69x8.69x2.11in. (22.1x22.1x5.4)

Weight

●  2.3 lbs (1.04 kg) (2.7 lbs for external)

Environmental

Cisco Aironet 2600i

●  Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

●  Nonoperating (storage) Altitude Test 25˚C, 15,000 ft.

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Operating humidity: 10 to 90% percent (noncondensing)

●  Operating Altitude Test: 40˚C, 9843 ft.

Cisco Aironet 2600e

●  Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

●  Nonoperating (storage) Altitude Test: 25˚C, 15,000 ft.

●  Operating temperature: -4 to 131°F (-20 to 55°C)

●  Operating humidity: 10 to 90 % (noncondensing)

●  Operating Altitude Test: 40˚C, 9843 ft.

System Memory

●  256 MB DRAM

●  32 MB flash

Input Power Requirements

●  AP2600: 44 to 57 VDC

●  Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz

Powering Options

●  802.3af Ethernet Switch

●  Cisco AP2600 Power Injectors (AIR-PWRINJ4=)

●  Cisco AP2600 Local Power Supply (AIR-PWR-B=)

Power Draw

●  AP2600: 12.95W

Note: When deployed using Power over Ethernet (PoE), the power drawn from the power sourcing equipment will be higher by some amount depending on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W.
